Brand Name ：
Jointair
Model Number ：
SDG-EF
Material ：
Aluminum
Color ：
RAL 9010/9016
Shape ：
Linear
Thickness ：
0.8-1mm
Size ：
Customized size
keyword：
重量
0
库存
0
隐藏域元素占位
- Description
- 参数
- Detail image
-

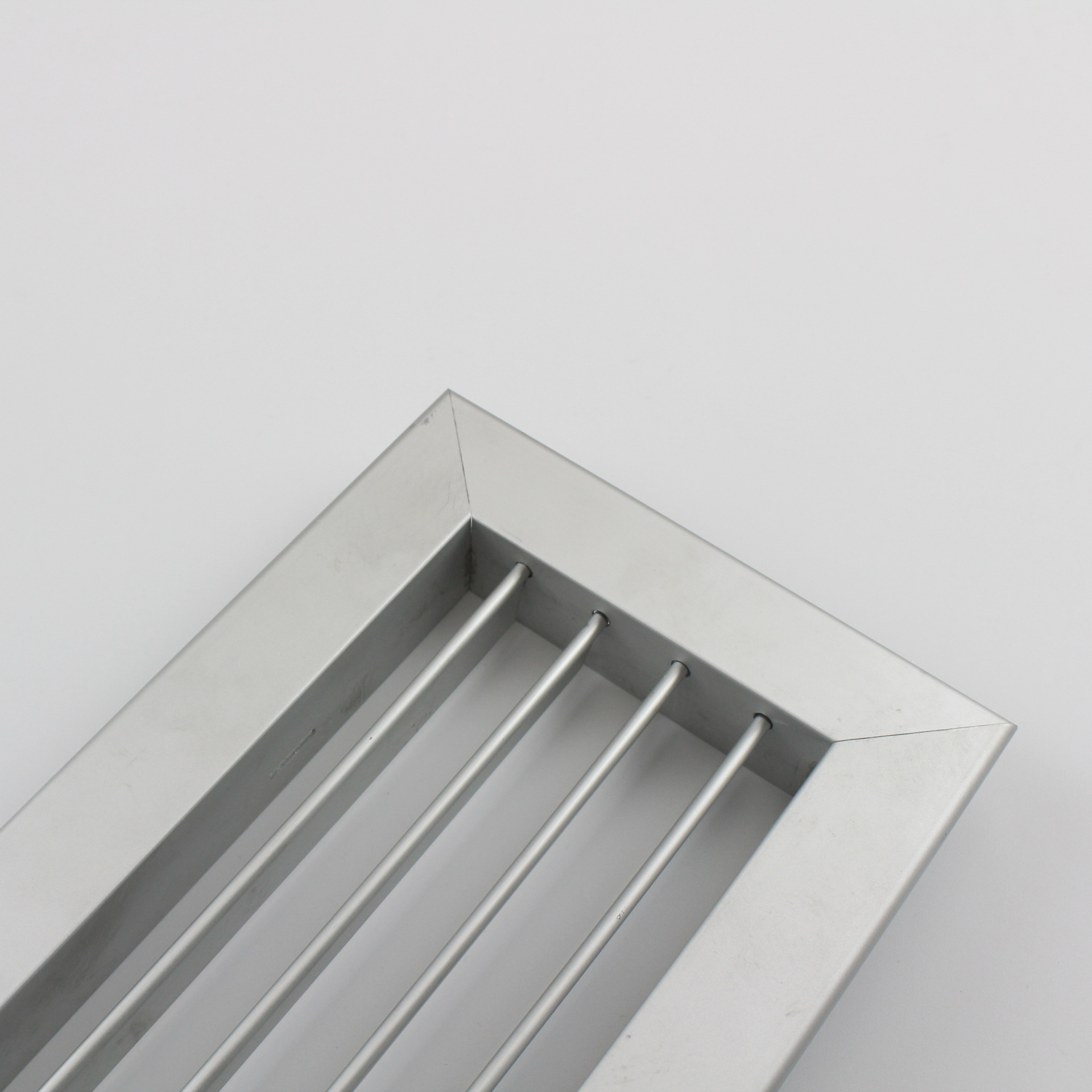

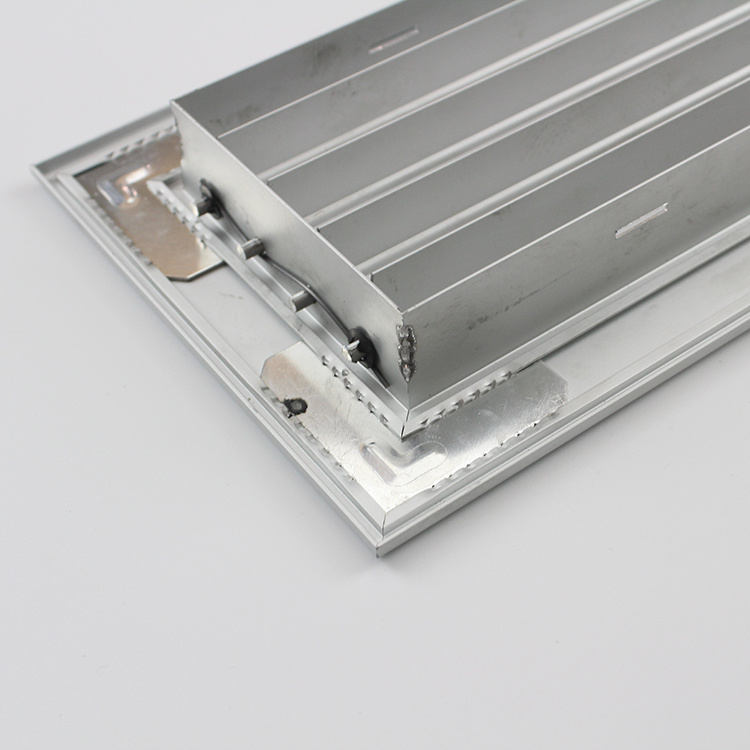

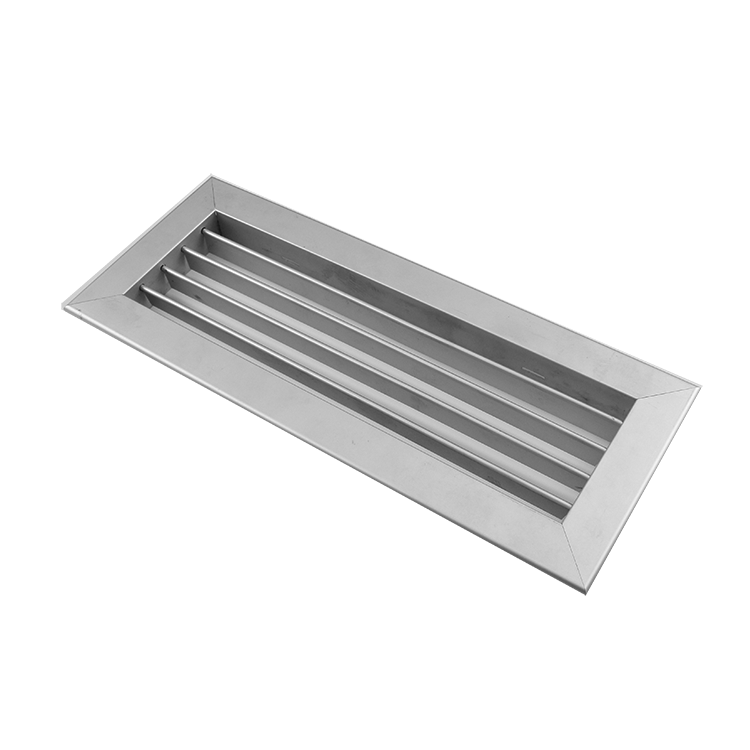

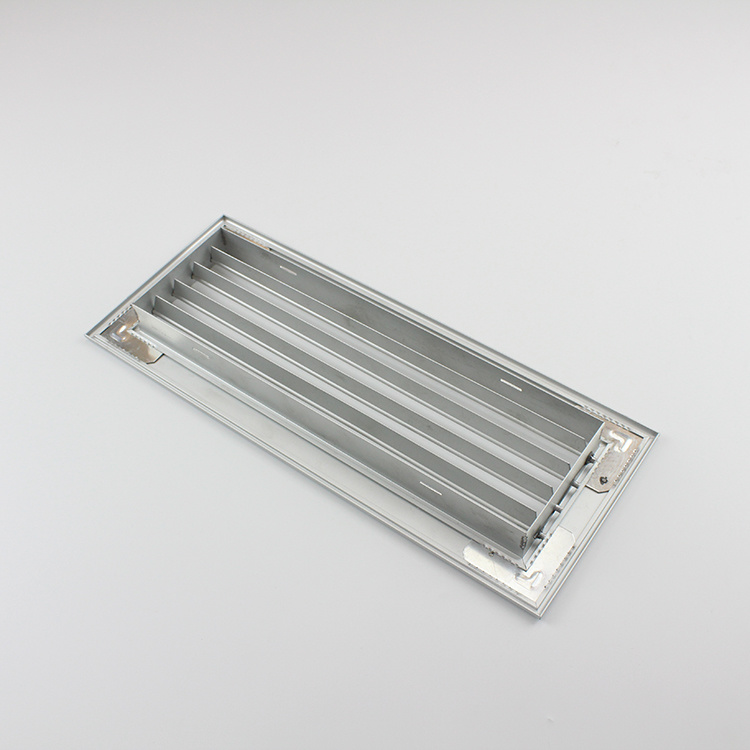

Single Deflection Grille
Feature Description
* Made of aluminum profile 6063 T5
* Powder coated white
* Beyond 600mm length will add one reinforcement in the center of the grille
* Size can be customized
* The blades are adjustable to change the angel of the air flowAccessories(Optional)

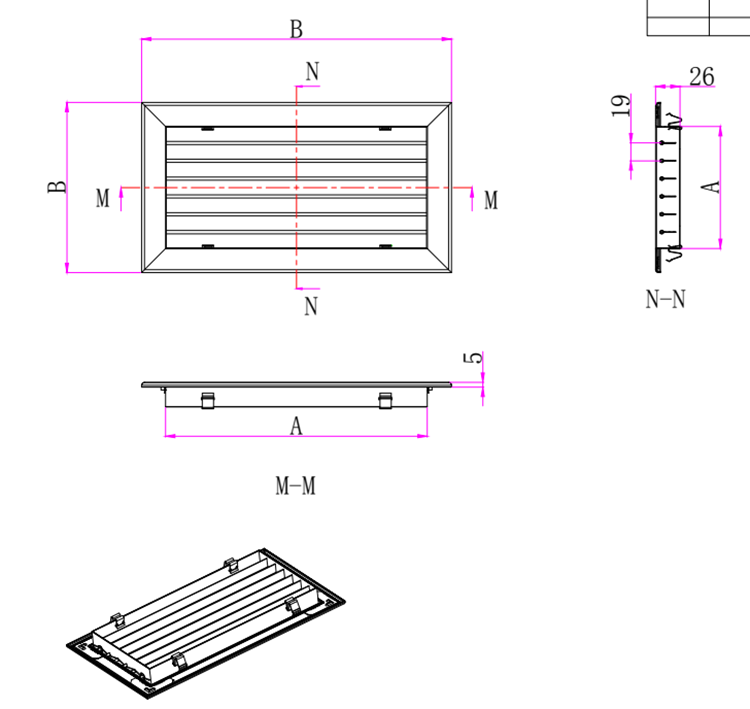

□ Clips □ Fixing screws □ Opposed blades damperCode A-A B-B H SDG-EF 250100 235*85 287*137 26 SDG-EF 300150 285*135 337*187 26 SDG-EF 400100 385*85 437*137 26 SDG-EF 400150 385*135 437*187 26 SDG-EF 500150 485*135 527*187 26 SDG-EF 600200 585*185 637*237 26
A single deflection grille with one layer blade is a practical and versatile component of any HVAC system. It features a single row of adjustable blades that allow you to control the direction of the air flow, making it ideal for use in heating and cooling applications. Whether you need to regulate the temperature of a large commercial space or a small residential room, a single deflection grille can help to improve air flow and temperature control. Its simple design and easy installation make it a popular choice for contractors and homeowners alike, while its durable construction ensures long-lasting performance. Whether you're looking to upgrade your existing HVAC system or install a new one, a single deflection grille with one layer blade is an essential component for improving air flow and temperature regulation.
single deflection grill single fixed deflection air grille single deflection air inlet louver
-
-
骏迪
- Brand Name Jointair
- Model Number SDG-EF
- Material Aluminum
- Color RAL 9010/9016
- Shape Linear
- Thickness 0.8-1mm
- Size Customized size
-
-
