Brand Name ：
Jointair
Model Number ：
PBS
Material ：
Galvanized steel
Color ：
RAL 9010/9016
Shape ：
Square
Thickness ：
0.8-1mm
Size ：
Customized size
keyword：
重量
0
库存
0
隐藏域元素占位
- Description
- 参数
- Detail image
-

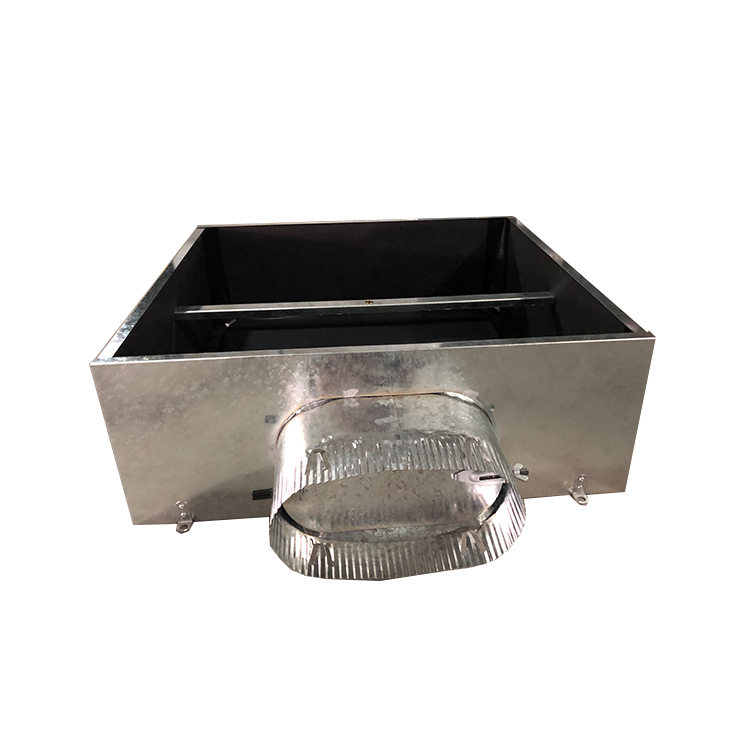

Plenum Box For Swirl Diffuser
Feature Description
* Rubber insulation
* Sizes can be customized
* Made of galvanizedsteel plate

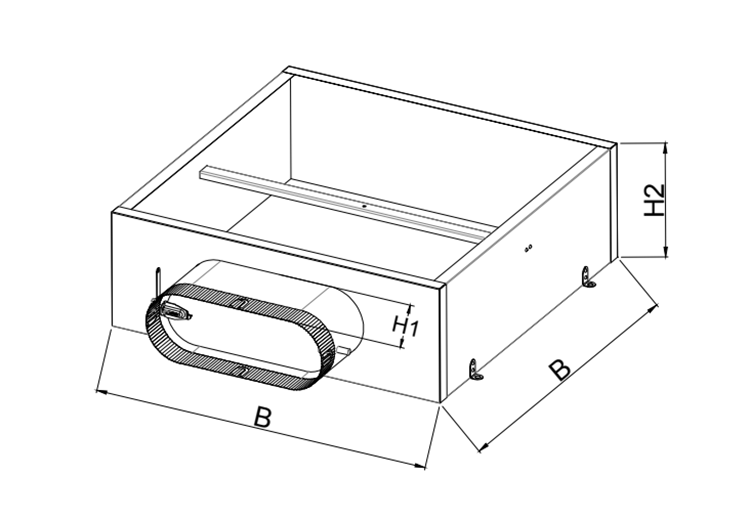

* Damper is optionalCode B-B H1 H2 Spigot PBS 595/150 595*595 107 200 Φ150 PBS 595/200 595*595 107 200 Φ200 PBS 595/250 595*595 107 200 Φ250 PBS 595/300 595*595 107 200 Φ300 PBS 595/350 595*595 107 200 Φ350 PBS 595/400 595*595 107 200 Φ400
A plenum box for swirl diffusers is an essential component for any HVAC system that requires a swirl air distribution pattern. It is designed to fit the swirl diffuser tightly and securely, creating an airtight seal for efficient airflow. The plenum box is made from high-quality galvanized steel with a thickness of either 0.5mm or 0.6mm, which ensures its durability and long service life.

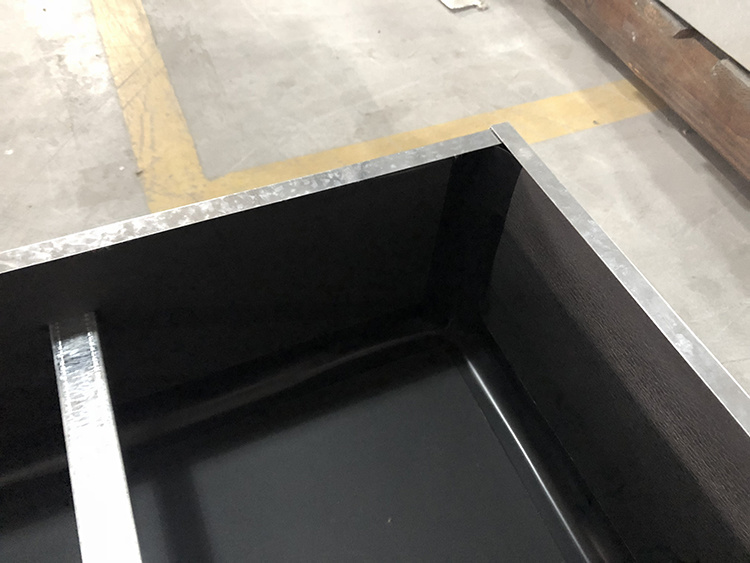

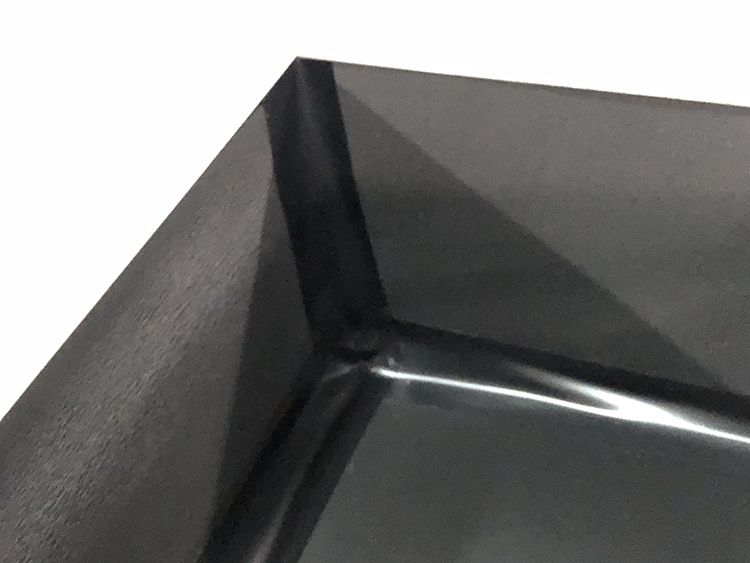

To enhance its efficiency, the plenum box comes with a 5mm rubber insulation material that is applied internally. The insulation material helps to prevent condensation and improve thermal efficiency, ensuring that the HVAC system functions optimally. Additionally, the plenum box has a customizable spigot size that can be tailored to meet specific requirements, and it is available in round or oval shapes.

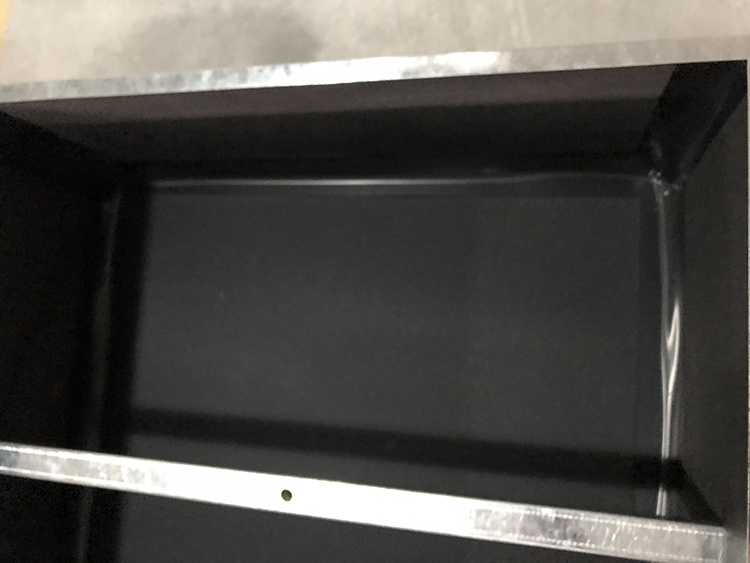

One of the outstanding features of the plenum box is its bracket in the center. The bracket is designed to fit perfectly with the swirl diffuser and provides a secure fixing point, ensuring that the diffuser remains firmly in place. The center bracket also ensures that the diffuser is installed at the right height and angle for optimal air distribution.
swirl diffuser swirl air diffuser ceiling swirl diffuser square swirl diffuser plenum box for swirl diffuser
-
-
骏迪
- Brand Name Jointair
- Model Number PBS
- Material Galvanized steel
- Color RAL 9010/9016
- Shape Square
- Thickness 0.8-1mm
- Size Customized size
-
-
