welcome GUANGZHOU JOINTAIR CO.,LTD
编号 :
1380139051863658496
DDG-GF
零售价
$ 0
市场价
$ 0
Brand Name :
Jointair
Model Number :
DDG-GF
Material :
Aluminum
Color :
RAL 9010/9016
Shape :
Rectangle
Thickness :
0.8-1mm
Size :
Customized size
keyword:
重量
0
库存
0
隐藏域元素占位
- Description
- 参数
- Detail image
-

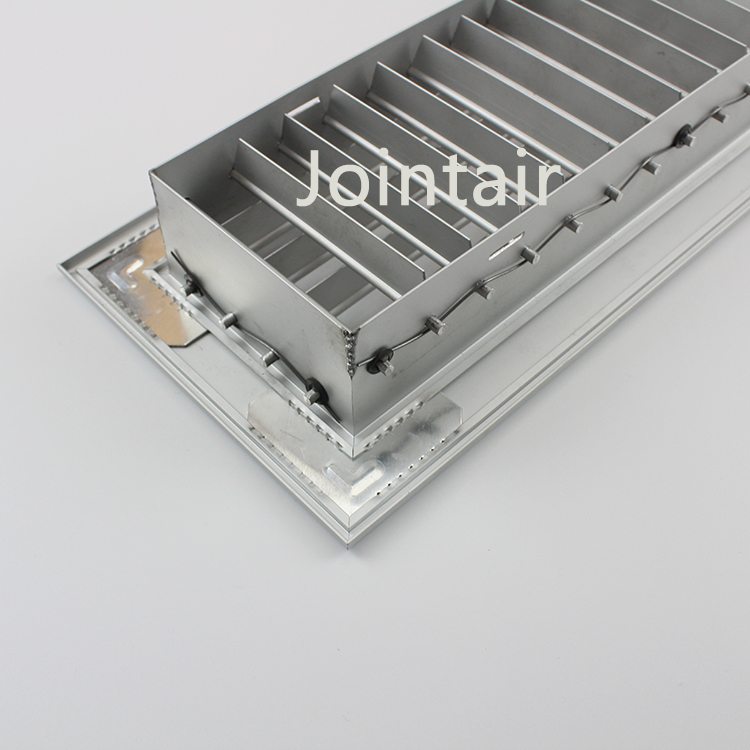

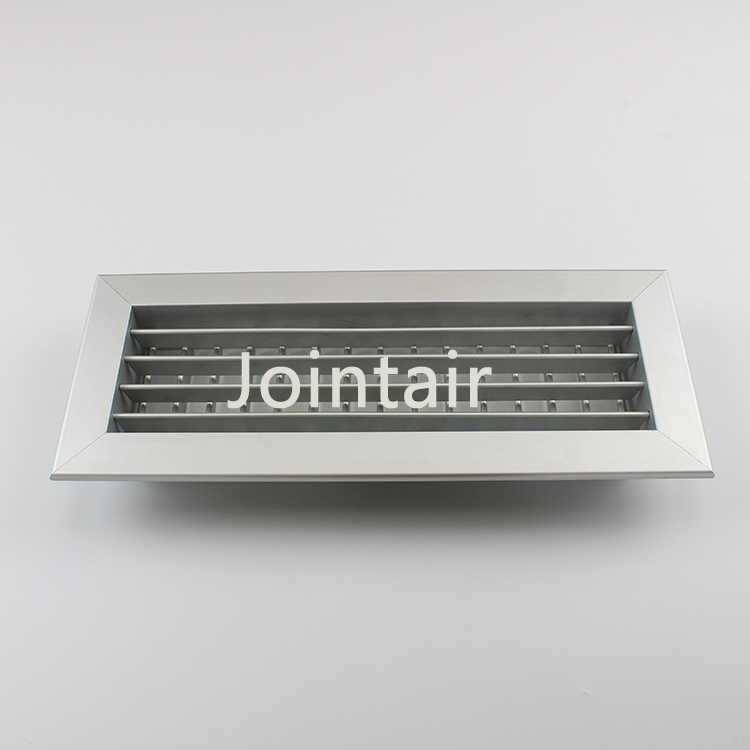

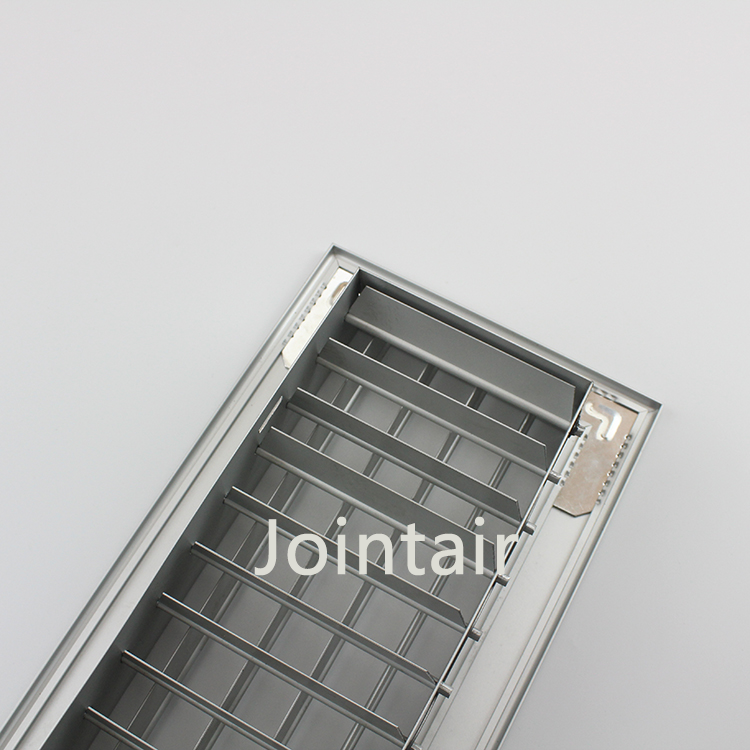

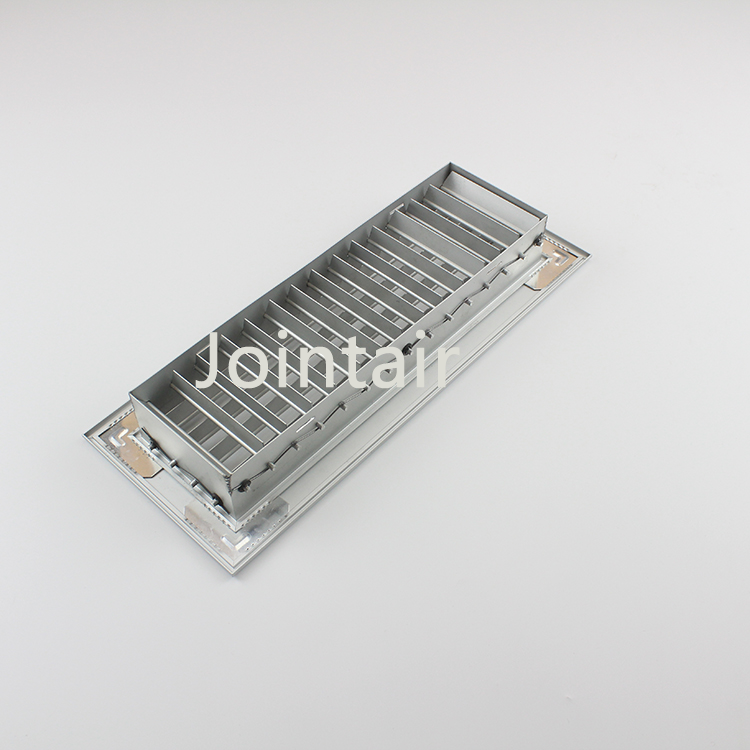

Double Deflection Grille
Feature Description
* Made of aluminum profile 6063 T5
* Powder coated white * Size can be customized
* The blades are adjustable to change the angel of the air flow
* The long blades on the top and the short blades on the bottom
* Beyond 600mm length will add one reinforcement in the center of the grille
Accessories(Optional)

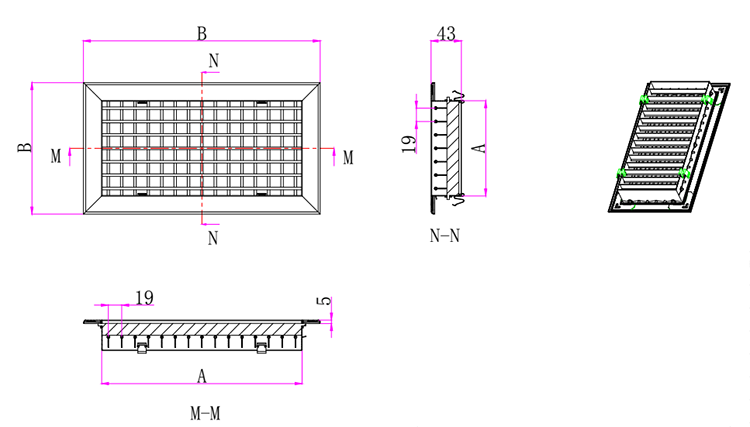

□ Clips □ Fixing screws □ Opposed blades damperCode A-A B-B H DDG-GF 250100 235*85 287*137 43 DDG-GF 300150 285*135 337*187 43 DDG-GF 400100 385*85 437*137 43 DDG-GF 400150 385*135 437*187 43 DDG-GF 500150 485*135 537*187 43 DDG-GF 600200 585*185 637*237 43 double deflection grille double grille double air grille air grille
-
-
骏迪
- Brand Name Jointair
- Model Number DDG-GF
- Material Aluminum
- Color RAL 9010/9016
- Shape Rectangle
- Thickness 0.8-1mm
- Size Customized size
-
-
