Drum Jet Diffuser

Brand Name :

Jointair

Model Number :

DJD

Material :

Aluminum plate

Color :

RAL 9010/9016

Shape :

Rectangle

Thickness :

0.8 - 1mm

Size :

Customized size


keyword:

Hotline:

重量

0

Quantity
-
+

库存

0

隐藏域元素占位

  • Description
  • 参数
  • Detail image
  • HVAC Aluminum Drum Louver Jet Air diffuser






    With a row of individually adjustable blades, drum jet diffusers are one of the most adjustable series of diffusers which are perfect for exhibition hall and airport terminals. Opposited blade dampers can be mounted on the rear part for airflow balancing. Sizes and finish can be customized.





    * Made of aluminum alloy 6063T5
    * Natural anodized and powder coated
    * Opposited blade damper is optional
    * The air direction / air volume is adjustable
    * Standard sizes or customized sizes are available

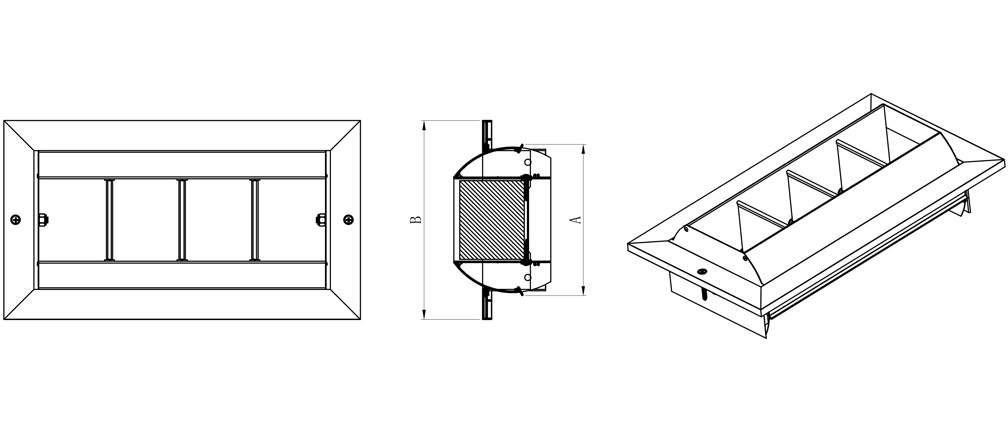

    Item A-A B-B H Blades
    DJD-A  237*160 297*208 102 2
    DJD-B 313*160 373*208 102 3
    DJD-C 465*160 525*208 102 5
    DJD-D 618*160 678*208 102 7
    DJD-E 516*260 576*303 159 3
    DJD-F 643*260 703*303 159 4
    DJD-G 770*260 830*303 159 5
    DJD-H 897*260 957*303 159 6







    Designed for optimal air distribution, the drum jet diffuser is a reliable and effective solution for industrial and commercial HVAC applications. Its adjustable core enables the direction and volume of airflow to be customized, ensuring precise and efficient air distribution. The diffuser's powerful air velocity enables it to deliver high volumes of air, making it ideal for large spaces that require rapid and effective ventilation. The diffuser is constructed from high-quality materials, such as aluminum, that are built to withstand high air volumes and velocities. Its easy-to-access core makes adjustments quick and easy, providing HVAC professionals with a flexible and versatile air distribution solution that delivers consistent and reliable performance.





    jet diffuser             drum louver              drum jet diffuser            drum diffuser

    • 骏迪

      • Brand Name Jointair
      • Model Number DJD
      • Material Aluminum plate
      • Color RAL 9010/9016
      • Shape Rectangle
      • Thickness 0.8 - 1mm
      • Size Customized size
  •
