Brand Name ：
Jointair
Model Number ：
UBS
Material ：
Galvanized steel
Color ：
RAL 9010/9016
Shape ：
Square to ellipse
Thickness ：
0.8 - 1mm
Size ：
Customized size
keyword：
重量
0
库存
0
隐藏域元素占位
- Description
- 参数
- Detail image
-

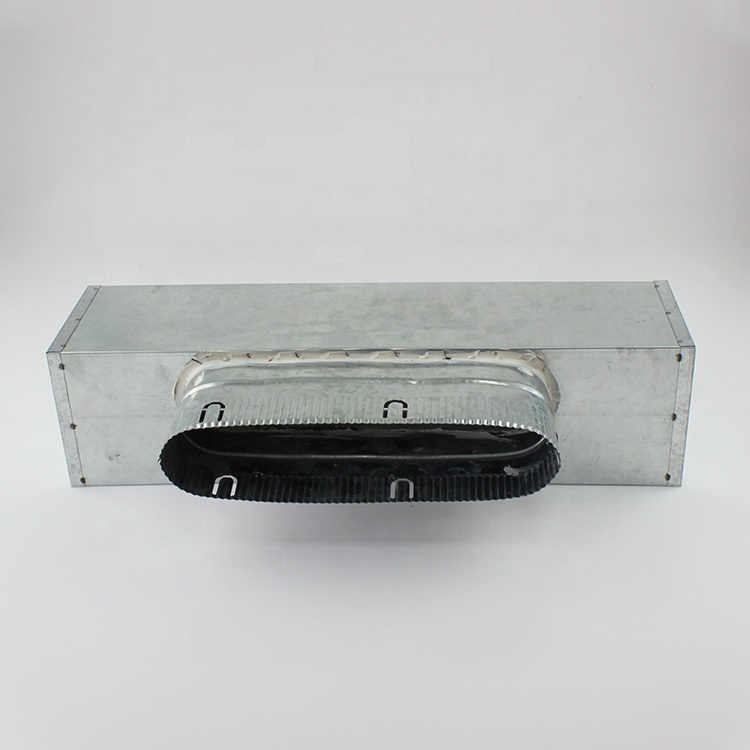

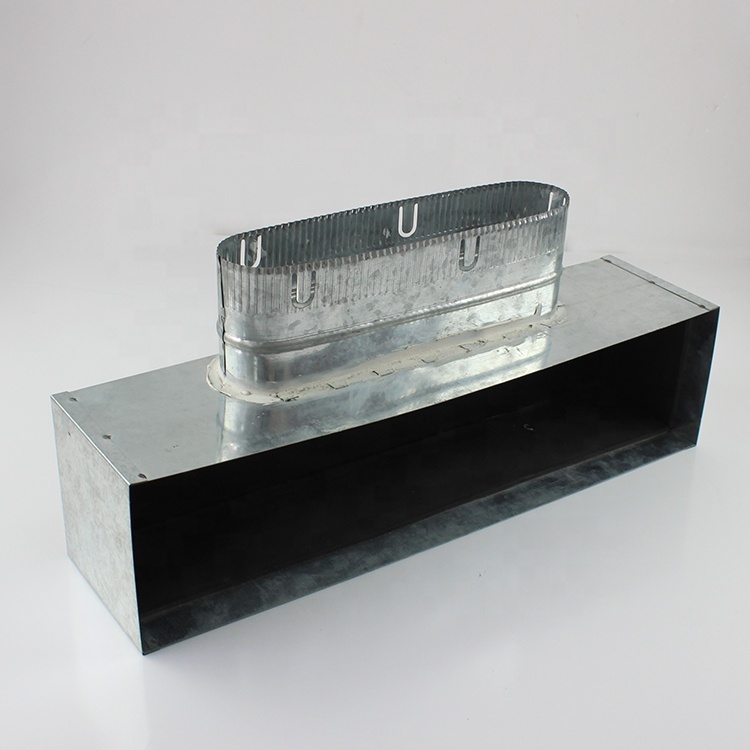

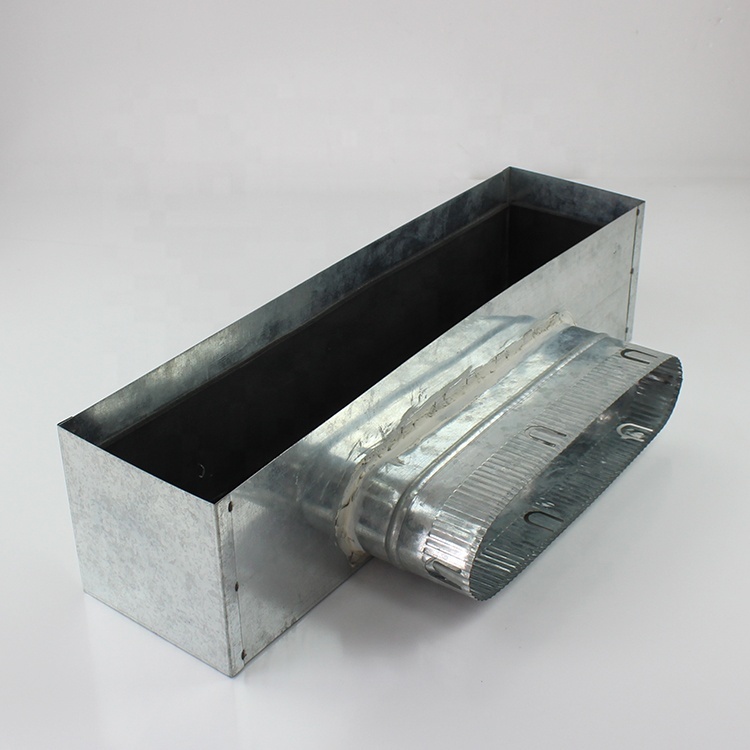

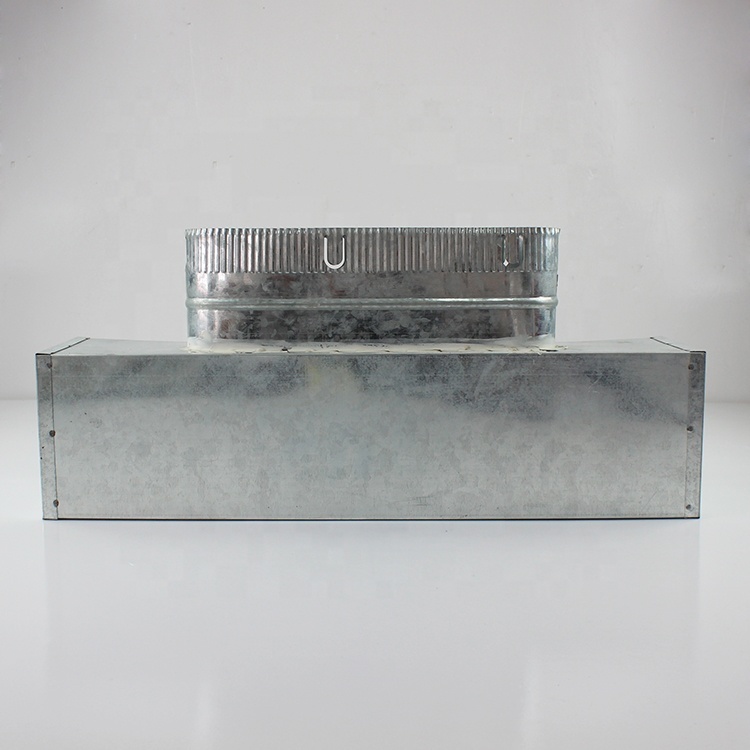

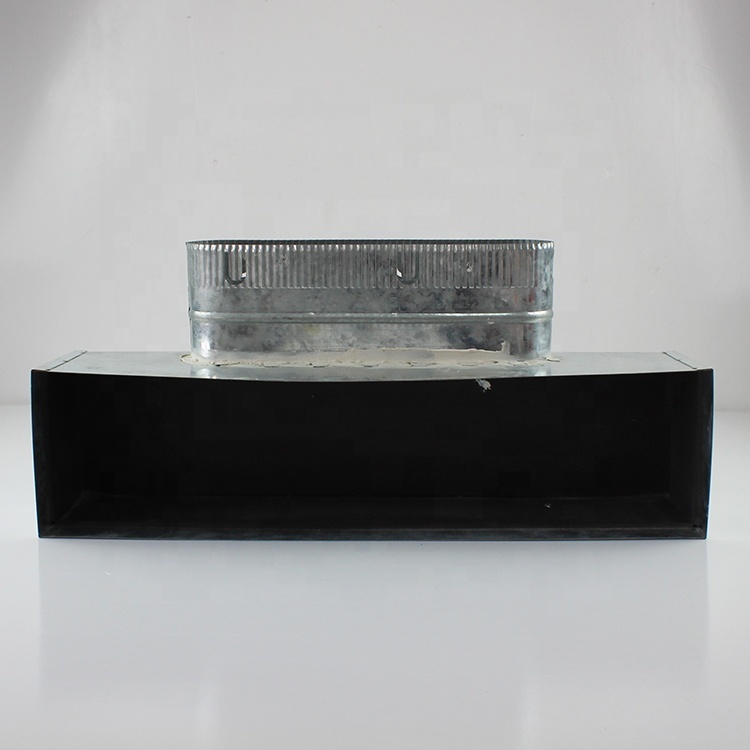

Uni boot is a type of plenum box that is designed for use with bar grilles or slot diffusers. It is typically made of galvanized steel and features a 5mm internal rubber insulation to reduce noise and heat transfer. The size of the uni boot can be customized to suit the specific needs of the project, and it can be manufactured with a variety of spigot sizes and shapes to fit the corresponding bar grille or slot diffuser.
One of the key features of the uni boot is its ability to provide a secure and stable mounting point for the bar grille or slot diffuser. The uni boot is typically equipped with a bracket in the center of the plenum box that can be used to fix the grille or diffuser in place. This helps to prevent any movement or rattling of the grille or diffuser, ensuring a consistent and reliable airflow.
Uni boots are commonly used in commercial and industrial HVAC systems, where they play an important role in distributing conditioned air to different areas of the building. They are available in a range of sizes and configurations to suit a variety of installation requirements, and can be customized to meet specific project needs.
uni boot air plenum box return air box hvac air box
-
-
骏迪
- Brand Name Jointair
- Model Number UBS
- Material Galvanized steel
- Color RAL 9010/9016
- Shape Square to ellipse
- Thickness 0.8 - 1mm
- Size Customized size
-
-
